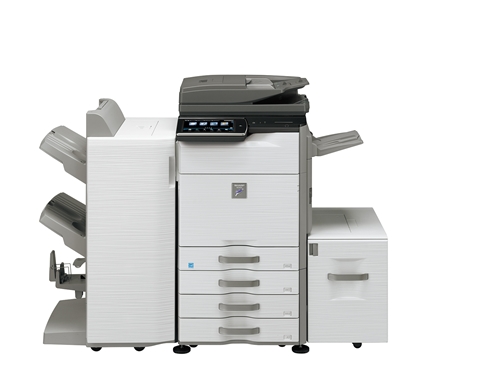

Sharp MX-M565N
 |
-
Large 10.1" high resolution touch-screen with tilt view
-
Real-time image preview with flick, tap, slide, pinch and zoom capabilities
-
Standard network ready PCL® 6 and true Adobe® PostScript® 3™ printing systems
-
Action menus provide users with feature specific guidance
-
Standard 256 bit data encryption and 7x overwrite protection
-
Energy efficient belt fusing lowers power consumption
|
Overview
The new Sharp Advanced Series Workgroup Document Systems deliver high productivity and strong versatility.
The MX-M365N, MX-M465N and MX-M565N monochrome document systems offer powerful multitasking workflow features and exceptional image quality at speeds up to 56 pages-per-minute. Designed for busy workgroup environments, these models combine a versatile modular design with tablet-style menu navigation and powerful output capabilities that can help virtually any office accomplish more in less time.
Productivity
- Standard out-of-box wireless networking, scan both sides of a document in a single pass at up to 170 IPM with the standard 150-sheet duplexing document feeder.
High Quality Output
- 1200 x 1200 dpi print resolution produces razor-sharp monochrome documents. True Adobe® PostScript® 3™ network printing provides faithful rendering of documents and print drivers that offer extensive job control.
Enhanced Security
- Standard security includes 256-bit data encryption and data overwrite, as well as Sharp’s convenient End-of-Lease Feature, which can delete all data files and user information at time of trade-in.
Ease-of-use
- Large 10.1" high-resolution LCD offers advanced menu features including flick, tap, slide, pinch and zoom.
Integration
- Available 500 + 2,000-sheet Tandem Paper Drawer that fits within the standard footprint of the MFP, as well as a choice of four high-performance finishers to give your documents a professional look.*
*Some features require optional equipment
|
FEATURES
Sharp OSA 3.5
Cloud-enabled Sharp OSA® Platform integrates with network applications and cloud services easily by extending beyond the firewall. |
|
10.1" Touch-screen
This high resolution 10.1” (measured diagonally) MFP Touch-Screen allows easy menu navigation and is fully customizable to enhance workflow. |
|
Security
Sharp offers a multi-layered security approach to help protect intellectual property and employees' privacy. |
Technical Specifications
Main Specifications
| Account Control: |
Up to 1,000 users. Supports user-number authentication (on device), login name/password (on device) or login name/password (on device via LDAP). |
| Auto Duplexing: |
Standard |
| Color Modes: |
Auto Color Selection (ACS), Full Color Mode, Monochrome (B/W), 2 Color Mode, Single Color Mode |
| Compression Type - Fax: |
JBIG, MMR, MR, MH |
| Compression Type - Scan Documents: |
Monochrome Scanning: Uncompressed, G3 (MH), G4 (MR/MMR) Color/Grayscale: JPEG (high, middle, low) Internet Fax mode: MH/MMR (option) |
| Continuous Copy: |
Max. 999 copies |
| Copy Features: |
Scan-Once Print-Many, electronic sorting, offset-stacking, Auto Color Sensing (ACS), Auto Paper Sensing (APS), Auto Magnification Sensing (AMS), image preview, image edit, auto tray switching, rotation copy, reserve copy, tandem copy, book copy, margin shift, tab-paper insertion, edge erase, center erase, book divide, dual page copy, cover pages, insert pages, OHP insertion, job build, card shot, multi-page enlargement, mirror image, black-white reversal, centering, proof copy, 2-in-1/4-in1, pamphlet, photo repeat, document filing, account management, job programs, date/character/page stamp. |
| Copy Method: |
Dry electrostatic transfer/Dual component developer/Magnetic brush development/OPC drums/Belt type fusing/White LED exposure |
| Copy/Print Speed: |
36 ppm B&W (8 1/2" x 11" Lateral Feed, Standard Resolution) |
| Copy Size: |
Min. 5 1/2" x 8 1/2", Max. 11" x 17" |
| ENERGY STAR®: |
Yes |
| Exposure Modes: |
Modes: Text, Text/Photo, Text/Printed-Photo, Photo Settings: Auto exposure control or 9 step manual exposure |
| Firmware Management: |
Flash ROM with USB and network update capability |
| First Copy Out Time: |
Platen Glass: 4.5 Seconds (B&W) (Based On Letter Size Original Using Copy Tray 1 With Laser Unit Motor Running) |
| Functions: |
Copy, Print, Network Print, Network Scan, Document Filing, and Fax |
| Grayscale: |
256 gradations/2 levels (monochrome) |
| Hard Disk Drive: |
320 GB |
| Imaging Method: |
Monochrome: TIFF, PDF, Encrypted PDF, XPS; Color: Grayscale, Color TIFF, JPEG, PDF, Encrypted PDF, XPS; Internet Fax: TIFF-FX, FIFF-F, TIFF-S |
| Interface Type: |
Interface Type RJ-45 Ethernet connection; 10/100/1000 BaseT; USB 2.0 |
| Job Programs: |
48 combined |
| Ledger: |
Yes |
| Letter / Legal: |
Yes |
| Magnification: |
Variable zoom 25% to 400% in 1% increments with 9 R/E presets |
| Max. Jobs in Memory: |
Up to 94 |
| Memory: |
Standard 4GB Shared |
| MFP Type: |
Desktop, color multifunction digital document system |
| Network Protocols: |
TCP/IP for Windows and Unix environments including HTTPS and SSL. IPX/SPX for Novell environments and EtherTalk for Macintosh environments |
| Network Security: |
IP/MAC address filtering, protocol filtering, port management, user authentication and document administration |
| Operating Systems: |
Windows Server 2003-2012, Windows XP, Windows Vista, Windows 7, Windows 8, MAC OS X10.4, X10.5, X10.6, X10.7, X10.8, Novell® Netware® Unix®, Linux® and Citrix® (XenApp 5.0 6.0, 6.5) and Windows Terminal Services, SAP device types. |
| Options: |
MX-DE12 Stand/1 x 500-sheet Paper Drawer MX-DE13 Stand/2 x 500-sheet Paper Drawer MX-DE14 Stand/3 x 500-sheet Paper Drawer MX-DE20 Stand/500 + 2,000-sheet Tandem Paper Drawer MX-LT10 Long Paper Feeding Tray MX-36ABD Rolling Cabinet Base MX-LC11 Large Capacity Tray MX-FN17 Inner Finisher MX-PN11B 3 Hole Punch Unit (Requires MX-FN17) MX-SCX1 Staple Cartridge (MX-FN17) MX-FN10 1K Saddle Stitch Finisher MX-RB22 Paper Pass Unit (Required for MX-FN10, MX-FN11 and MX-FN18) MX-PNX5B 3 Hole Punch Unit (MX-FN10) AR-SC3 Staple Cartridge (MX-FN10) MX-FN11 4K Stacking Finisher MX-FN18 4K Saddle Stitch Finisher MX-PNX6B 3 Hole Punch Unit (MX-FN11/MX-FN18) AR-SC2 Staple Cartridge (MX-FN11/MX-FN18) MX-TR13N Right-side Exit Tray Unit MX-TU12 Center Exit Tray Unit MX-PUX1 XPS Expansion Kit (Requires MX-565XPS1GB) MX-565XPS1GB 1GB Memory Upgrade (Required for MX-PUX1) MX-FX11 Fax Expansion Kit MX-FWX1 Internet Fax Kit MX-PF10 Bar Code Font Kit AR-SU1 Stamp Unit (Requires AR-SV1 Stamp Cartridge) AR-SV1 Stamp Cartridge MX-EB11 Enhanced Compression Kit MX-EB12N Mirror Expansion Kit MX-AM10 Web Browsing Expansion Kit (Standard on the MX-M565N) MX-AMX1 Application Integration Module MX-FR44U Commercial Data Security Kit (Available shortly after launch) MX-EC50 CAC Reader (Requires Data Security Kit) DVENDFS Generic Vendor Interface Kit |
| Original Feed System: |
100-sheet reversing single pass feeder (RSPF) with original size detection |
| Originals: |
Sheet, bound documents |
| Original Size: |
Max 11" x 17" |
| Output Capacity: |
Main output tray 500 sheets (face down), 100 sheets in optional Job Separator Tray, and 1,000 sheets in optional finisher (output tray is user selectable) |
| Paper Feed System: |
Standard: (1) 500-sheet paper drawer (letter/legal/ledger/statement) and 100-sheet bypass tray (letter/legal/ledger/statement/envelope). Optional: single, double or triple drawer paper deck (500 sheets each drawer), tandem paper deck (2,500 sheets) letter/legal/ledger/statement. |
| Paper Type: |
Paper drawers: 16 lb. bond -80 lb. cover. Other paper types include plain, pre-printed, recycled, pre-punched, letterhead and color paper. Bypass tray: 16-28 lb. bond (plain paper), 13-16 lb. bond (thin paper), 80-110 lb. cover (heavy paper), 20-24 lb. bond (Monarch/Com-10 envelope), tab paper (letter). Also label paper, gloss paper, pre-printed, recycled, pre-punched, letterhead, color paper and OHP film. |
| Power Consumption: |
Maximum 1400 W or less; Sleep Mode: 13 W or less; Low Power Mode: 138.55 W or less |
| Power Source: |
AC 100-127 V, 60 HZ, 12 Amps |
| Resolution (copy mode): |
Scan: 600 dpi; Copy Output: 1200 dpi |
| RoHS: |
Yes |
| Software: |
Sharpdesk™ desktop document management software (1 user license) |
| Supplies: |
MX560NT_MX-560NV_MX-560DR_MX-560HB |
| Warm-Up Time: |
12 seconds or less |
| Web-based Management: |
Yes |
Printing System
| Direct Printing: |
Files Types: TIFF, JPEG, PCL, PRN, PDF, Encrypted PDF; Methods: FTP, PostScript, XPS, Web Page, E-mail and USB Memory |
| Page Description Language: |
Standard PCL6 Compatible, standard true Adobe PostScript 3, optional XPS |
| Print Drivers: |
Windows XP, Windows XP x64, Windows Server® 2003-2008, Windows Server 2003-2008 x64, Windows Vista®, Windows Vista, x64, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows Server 2012 x64, Windows PPD, MAC OSX® (including 10.4, 10.5, 10.6, 10.7, 10.8), all MAC PPD |
| Print Features: |
Auto configuration, continuous printing, electronic sorting, offset stacking, N-up printing, duplex printing, transparency inserts, margin shift, image rotation, different cover page, poster print, job bypass print, job retention, confidential print, proof print, user authentication, image stamp and watermarks. Additional features: Multiple pamphlet, network tandem print, carbon copy print mode, different cover page/last page/other page, form overlay, tab paper settings, tab printing, chapter inserts, page Interleave and bar code font printing (requires MX-PF10 bar code font kit) |
| Printing Protocols: |
LPR IPP IPPS PAP RawTCP port9100 FTP Novell Pserver Rprinter |
| RIP-Once Print-Many: |
Yes |
Document Scanning
| Broadcasting - Document Scanning: |
Yes |
| Image Formats: |
Monochrome: TIFF, PDF, Encrypted PDF, XPS; Color: Grayscale, Color TIFF, JPEG, PDF, Encrypted PDF, XPS; Internet Fax: TIFF-FX, FIFF-F, TIFF-S |
| Scan capability (color/B&W): |
Color, B&W |
| Scan Destinations (number): |
2000 |
| Scan Destination type: |
E-mail, Desktop, FTP, Folder (SMB), USB, Internet fax (option), Super G3 fax (option) |
| Scan Resolution Settings: |
100 dpi, 200 dpi, 300 dpi, 400 dpi, 600 dpi |
Finishing
| Hole Punching: |
Optional |
| Saddle Stitch Finisher: |
Optional |
| Saddle Stitch Function: |
Optional |
| Stapler / Finisher: |
Optional |
| Staple Sheet Capacity: |
50 |
Super G3 Fax
| Auto Dialing: |
Up to 999 destinations (combined with scan destinations) |
| Fax Features: |
Quick on-line transmission, direct transmission, F-Code transmission/reception, rotate transmission, anti-junk fax reception, automatically staple received faxes, secure fax release, out of paper memory reception, auto redial, duplex reception transaction reports, activity reports and PC fax |
| Fax Kit: |
Optional |
| Group Dialing Destinations: |
Up to 500 |
| Inbound Routing: |
Optional |
| Long Length Originals: |
Up to 31.5" (for transmission) |
| Modem/Speed: |
33.6 KBPS / Approximately 2 seconds with JBIG |
| One Touch Destinations: |
Up to 999 destinations (combined with scan destinations) |
|
|
