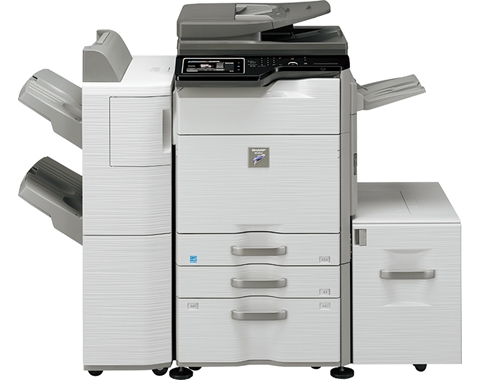

Sharp MX-M564N
 |
-
Standard ledger-size copy, print and color scanning
-
56 ppm B&W networked digital MFP
-
Maximum Paper Capacity of 6,600 sheets
-
100-sheet Reversing Single Pass Feeder with Duplexing
-
Standard PCL®6 compatible printing language
-
High-resolution 7" touch-screen color display
-
Standard Document Filing System with thumbnail view and image preview
|
Overview
The new Sharp Essentials Series Workgroup Document Systems deliver full multifunction capability and excellent value.
The MX-M364N, MX-M464N and MX-M564N monochrome document systems offer flexible multitasking workflow features and high quality output at speeds up to 56 pages-per-minute. Designed for busy workgroup environments, these models combine versatile paper handling with robust finishing options in a compact modular design that is also affordable. The new Sharp Essentials Series can help virtually any office accomplish more in less time.
Productivity
- Standard full multifunction capability out-of-box includes copying, PCL® 6 network printing and color network scanning up to 56 IPM with a standard 100-sheet reversing single-pass document feeder.
High Quality Output
- 600 x 600 dpi print resolution produces razor-sharp documents. Available PostScript® 3™ network printing offers enhanced compatibility and drivers that provide extensive job control.
Enhanced Security
- Standard security includes 256-bit data encryption and data overwrite, as well as Sharp’s convenient End-of-Lease Feature, which can delete all data files and user information at time of trade-in.
Ease-of-use
- 7" LCD provides quick access to features with intuitive menu navigation, and an available, retractable QWERTY keyboard* enables easy data entry.
Integration
- Available 500 + 2,000-sheet Tandem Paper Drawer that fits within the standard footprint of the MFP, as well as a choice of four high-performance finishers to give your documents a professional look.*
*Some features require optional equipment
|
FEATURES
Sharp OSA 3.5
Cloud-enabled Sharp OSA® Platform integrates with network applications and cloud services easily by extending beyond the firewall. |
|
7" Touch-screen
This high resolution 7” (measured diagonally) MFP Touch-Screen allows easy menu navigation and is fully customizable to enhance workflow. |
|
Security
Sharp offers a multi-layered security approach to help protect intellectual property and employees' privacy. |
Technical Specifications
Main Specifications
| Account Control: |
Up to 1,000 users. Supports user-number authentication (on device), login name/password (on device) or login name/password (on device via LDAP). |
| Auto Duplexing: |
Standard |
| Compression Type - Fax: |
JBIG, MMR, MR, MH |
| Compression Type - Scan Documents: |
Monochrome Scanning: Uncompressed, G3 (MH), G4 (MR/MMR) Color/Grayscale: JPEG (high, middle, low) Internet Fax mode: MH/MMR (option) |
| Continuous Copy: |
Max. 999 copies |
| Copy Features: |
Scan-once Print-many (Electronic Sorting), Offset-stacking, Auto Color Selection (ACS), Auto Paper Selection (APS), Auto Magnification Selection (AMS), Auto Tray Switching, Rotation Copy, Job Reservation, Tandem Copy, Book Copy, Margin Shift, Tab-paper Insertion, Edge Erase, Center Erase, Dual-page Copy, Cover Pages, Insert Pages, OHP Insertion, Job Build, Card Shot, Mirror Image, B/W Reversal, Centering, Proof Copy, 2-in-1, 4-in-1, Pamphlet, Photo Repeat, Multi-page Enlargement, Document Filing, Account Management, Job Programs, Stamp Mode (Date / Text / Page B&W / Color) |
| Copy/Print Speed: |
36 ppm B&W (8 1/2" x 11" Lateral Feed, Standard Resolution) |
| Copy Size: |
Min. 5 1/2" x 8 1/2", Max. 11" x 17" |
| ENERGY STAR®: |
Yes |
| Exposure Modes: |
Modes: Text, Text/Photo, Text/Printed-Photo, Photo Settings: Auto exposure control or 9 step manual exposure |
| Firmware Management: |
Flash ROM with USB and network update capability |
| First Copy Out Time: |
Platen Glass: 4.5 Seconds (B&W) (Based On Letter Size Original Using Copy Tray 1 With Laser Unit Motor Running) |
| Grayscale: |
256 gradations/2 levels (monochrome) |
| Hard Disk Drive: |
320 GB |
| Interface Type: |
Interface Type RJ-45 Ethernet connection; 10/100/1000 BaseT; USB 2.0 |
| Job Programs: |
48 combined |
| Ledger: |
Yes |
| Letter / Legal: |
Yes |
| Magnification: |
Variable zoom 25% to 400% in 1% increments with 9 R/E presets |
| Max. Jobs in Memory: |
Up to 94 |
| MFP Type: |
Desktop, color multifunction digital document system |
| Network Protocols: |
TCP/IP for Windows and Unix environments including HTTPS and SSL. IPX/SPX for Novell environments and EtherTalk for Macintosh environments |
| Network Security: |
IP/MAC address filtering, protocol filtering, port management, user authentication and document administration |
| Operating Systems: |
Windows Server 2003-2012, Windows XP, Windows Vista, Windows 7, Windows 8, MAC OS X10.4, X10.5, X10.6, X10.7, X10.8, Novell® Netware® Unix®, Linux® and Citrix® (XenApp 5.0 6.0, 6.5) and Windows Terminal Services, SAP device types. |
| Options: |
MX-DE12 Stand/1 x 500-sheet Paper Drawer, MX-DE13 Stand/2 x 500-sheet Paper Drawer, MX-DE14 Stand/3 x 500-sheet Paper Drawer, MX-DE20 Stand/500 + 2,000-sheet Tandem Paper Drawer, MX-LT10 Long Paper Feeding Tray, MX-36ABD Rolling Cabinet Base, MX-LC11 Large Capacity Tray, MX-FN17 Inner Finisher, MX-PN11B 3 Hole Punch Unit (Requires MX-FN17), MX-SCX1 Staple Cartridge (MX-FN17), MX-FN10 1K Saddle Stitch Finisher, MX-RB22 Paper Pass Unit (Required for MX-FN10, MX-FN11 and MX-FN18), MX-PNX5B 3 Hole Punch Unit (MX-FN10), AR-SC3 Staple Cartridge (MX-FN10), MX-FN11 4K Stacking Finisher, MX-FN18 4K Saddle Stitch Finisher, MX-PNX6B 3 Hole Punch Unit (MX-FN11/MX-FN18), AR-SC2 Staple Cartridge (MX-FN11/MX-FN18), MX-TR13N Right-side Exit Tray Unit, MX-TU12 Center Exit Tray Unit, MX-PK11 PostScript3 Expansion Kit, MX-PUX1 XPS Expansion Kit (Requires MX-SHP2GBXPS), MX-SHP2GBXPS 2 GB Memory Upgrade (Required for MX-PUX1), MX-KB14N Retractable Keyboard, MX-FX11 Fax Expansion Kit, MX-FWX1 Internet Fax Kit, MX-PF10 Bar Code Font Kit, AR-SU1 Stamp Unit (Requires AR-SV1 Stamp Cartridge), AR-SV1 Stamp Cartridge, MX-AMX1 Application Integration Module, MX-AMX2 Application Communication Module, MX-AMX3 External Accounting Module, MX-FR45U Commercial Data Security Kit (Available shortly after launch), DVENDFS Generic Vendor Interface Kit |
| Original Feed System: |
100-sheet reversing single pass feeder (RSPF) with original size detection |
| Originals: |
Sheet, bound documents |
| Original Size: |
Max 11" x 17" |
| Output Capacity: |
Main output tray 500 sheets (face down), 100 sheets in optional Job Separator Tray, and 1,000 sheets in optional finisher (output tray is user selectable) |
| Paper Type: |
Standard paper trays: 16 lb. bond to 110 lb. index; includes plain paper, heavy paper, recycled, pre-printed, pre-punched colored, and letterhead. Optional paper trays: 16 lb. bond to 170 lb. index, supports same as standard trays, also supports thin paper, transparency, tab and label paper through bypass tray. |
| Power Consumption: |
Maximum 1400 W or less; Sleep Mode: 13 W or less; Low Power Mode: 138.55 W or less |
| Power Source: |
AC 100-127 V, 60 HZ, 12 Amps |
| Resolution (copy mode): |
Scan: 600 dpi; Copy Output: 600 dpi |
| RoHS: |
Yes |
| Software: |
Sharpdesk™ desktop document management software (1 user license) |
| Web-based Management: |
Yes |
Printing System
| Print Drivers: |
Windows Server® 2003-2008, Windows XP, Windows XP x64, Windows Server 2003-2008 x64, Windows Vista®, Windows Vista® x64, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, MAC OSX (including 10.4, 10.5-10.8), all MAC PPD |
| Printing Protocols: |
LPR IPP IPPS PAP RawTCP port9100 FTP Novell Pserver Rprinter |
| RIP-Once Print-Many: |
Yes |
Document Scanning
| Broadcasting - Document Scanning: |
Yes |
| Scan capability (color/B&W): |
Color, B&W |
| Scan Destinations (number): |
999 |
| Scan Resolution Settings: |
100 dpi, 200 dpi, 300 dpi, 400 dpi, 600 dpi |
Finishing
| Hole Punching: |
Optional |
| Saddle Stitch Function: |
No |
| Stapler / Finisher: |
Optional |
| Staple Sheet Capacity: |
50 |
Super G3 Fax
| Auto Dialing: |
Up to 999 destinations (combined with scan destinations) |
| Fax Kit: |
Optional |
| Group Dialing Destinations: |
Up to 500 |
| Inbound Routing: |
Optional |
| Long Length Originals: |
Up to 31.5" (for transmission) |
| Modem/Speed: |
33.6 KBPS / Approximately 2 seconds with JBIG |
| One Touch Destinations: |
Up to 999 destinations (combined with scan destinations) |
|
|
