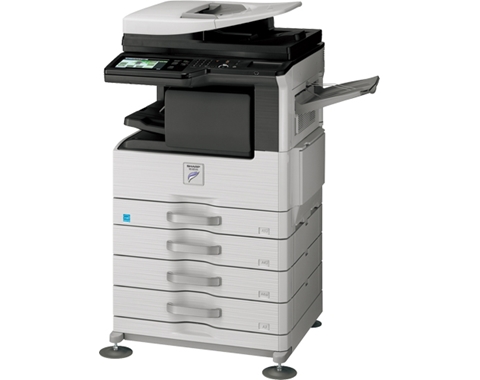

Sharp MX-M314N
 |
- 31-ppm MFP with 1200 dpi x 600 dpi (enhanced) output
- Standard Network Color Scanning
- 100 sheet reversing automatic document feeder
- Standard 2 x 500 sheet cassettes and 100 sheet bypass tray
- Standard PCL®6 printing language
- Large touch-screen Color LCD Display
- Optional 500-sheet compact inner finisher
 |
Overview
In today's fast-paced business environment, you need to operate at peak efficiency. And with Sharp's MX-M264N Document System, you'll be able to raise office productivity to a whole new level. With enhanced versatility, the MX-M314N Document System delivers everything your business needs to get ahead by offering 31-ppm copying and printing, convenient networking, and integrated multifunction capabilities. This Document System is ideal for busy departments and workgroups. Available features include a 100-sheet reversing document feeder, auto duplexing, 1200 x 600 dpi (enhanced) laser output, and a large 7" (measured diagonally) touch-screen LCD display that makes operation easy and intuitive. Advanced micro-fine toner technology offers sharp, high-quality images page after page. And best of all, the modular design makes it easy to add functionality to adapt to your changing business needs. Standard multifunction capabilities include PCL® 6 and color network printing and scanning, as well as optional PostScript® 3™ and Super G3 faxing. Embedded software delivers easy-to-use web-based management tools as well as state-of-the-art security features that help your business protect intellectual property and meet regulatory compliance.
|
FEATURES
Sharp OSA 3.5
Cloud-enabled Sharp OSA® Platform integrates with network applications and cloud services easily by extending beyond the firewall. |
|
7" Touch-screen
This high resolution 7” (measured diagonally) MFP Touch-Screen allows easy menu navigation and is fully customizable to enhance workflow. |
|
Security
Sharp offers a multi-layered security approach to help protect intellectual property and employees' privacy. |
Technical Specifications
Main Specifications
| Account Control: |
100 profiles |
| Auto Duplexing: |
Yes |
| Auto Switching: |
Yes |
| Bypass Tray: |
100 Sheet |
| Card Shot Feature: |
Yes |
| Compression Type - Fax: |
JBIG, MMR, MR, MH |
| Continuous Copy: |
Maximum 9999 |
| Copy Features: |
Scan-Once Print-Many, electronic sorting, Auto Paper Sensing (APS), Auto Magnification Sensing (AMS), auto tray switching, memory copy, manual zoom, job build, split scan, booklet copy, multi-shot, reverse image, cover page, department control, job programs, auditor/coin vend ready, toner save mode, and total counter. |
| Copy Method: |
Dry electrostatic transfer system |
| Copy/Print Speed: |
31 Copies Per Minute |
| Copy Size: |
Min. 5 1/2" x 8 1/2", Max. 11" x 17" |
| Electronic Sorting: |
Up to 100-sheet electronic sorting (shared Function: memory), group copy, rotation copy, 2-in-1 copy / 4-in-1 copy, edge erase, center erase, and margin shift. |
| ENERGY STAR®: |
Yes |
| Exposure Modes: |
Photo mode: 600 dpi, Auto exposure: 600 dpi |
| Exposure System: |
Fixed optical source, slit exposure (stationary platen) with automatic exposure |
| Fixed Zoom Range: |
25%, 50%, 64%, 77%,100%, 121%, 129%, 200%, 400% |
| Functions: |
Copy, print, network print, network scan, and fax |
| Grayscale: |
256 levels |
| Imaging Method: |
Laser |
| Interface Type: |
Standard: USB 2.0 port |
| Job Programs: |
10 profiles |
| Ledger: |
Yes |
| Letter / Legal: |
Yes |
| Memory: |
32 MB total (includes electronic sorting), expandable with up to 1,056 MB option |
| MFP Type: |
Digital Multifunction System |
| Network Interface: |
RJ-45 Ethernet connection |
| Network Protocols: |
TCP/IP for Windows, IPV4/IPV6, Apple/Macintosh, and Unix environments, IPX/SPX for Novell environments, and AppleTalk for Macintosh environments |
| Network Security: |
IP/Mac Address Filtering, protocol enable/disable, SSL Encryption, Ipsec |
| Operating Systems: |
Windows® 2000, Windows XP, Windows XP x64, Windows Vista®, Windows Vista x64 |
| Optional Power Filter: |
Yes |
| Original Feed System: |
100-sheet reversing single pass feeder (RSPF)/document glass |
| Original Feed System: |
Standard: 100-sheet reversing single pass document feeder (RSPF) with stream feeding mode, mixed letter/legal size original detection, and mixed (lateral feed) letter/ledger original size detection. |
| Originals: |
Sheet, bound documents |
| Original Size: |
11" x 17" Max |
| Original type: |
Flat bed / sheet fed w/ RSPF |
| Output Capacity: |
Main output tray 500 sheets (face down), 100 sheets in optional Job Separator Tray, and 1,000 sheets in optional finisher (output tray is user selectable) |
| Output Trays: |
2 trays, face down |
| Paper Feed System: |
Standard: (2) 500-sheet cassettes, Standard: (1) 100-sheet manual bypass tray, Optional: (1) 500 sheet paper feed unit or (1)1000-sheet paper feed unit (500 x 2) |
| Paper Size: |
Letter, Legal, Ledger |
| Paper Type: |
Paper Cassettes: 15-21 lb. standard or recycled bond, or 21-28 lb. special paper. Bypass Tray (multi-sheet feed): Up to 100 sheets 14-21 lb. standard or recycled bond paper, up to 40 sheets for OHP film and labels, up to 30 sheets for 21-54 lb. thick paper, up to 5 sheets for envelopes (#10). Bypass (single-sheet feed tray); 14-34 lb. standard or recycled bond paper, OHP, labels, and think paper up to 54 lb. |
| Power Consumption: |
Maximum 1,450 W, pre-heat 90 W, sleep mode 1.2 W |
| Power Source: |
AC 120 V, 60 HZ, 12 Amps |
| Resolution (copy mode): |
Scan: 400 dpi; Copy Output: 600 dpi |
| RoHS: |
Yes |
| Separator Tray: |
Optional |
| Software: |
Sharpdesk™ Document Management Software (included) |
| Supplies: |
MX-312NT toner, MX-312NV developer, MX-312NR drum |
| Warm-Up Time: |
20 seconds or less |
| Web-based Management: |
Optional |
| Zoom Range: |
25% to 400% in 1% increments (with RSPF 50%-200%) |
Printing System
| JBIG Enhanced Print Function: |
Standard |
| Network Operating Systems: |
Windows® 2000, Windows XP, Mac® OS 8.6-9.2.2, 10.2.8, 10.3.9,10.4.11 and 10.5-10.5.06 |
| Page Description Language: |
PCL6 (XL), PCL5e, optional PS3 |
| Printer Expansion Kit: |
Standard |
| Print Features: |
Binding edge, N-up printing, different cover page/last page, transparency inserts, carbon copy print mode, continuous printing, overlay, fit to page, watermarks, PIN printing, print hold, proof print, print auditor, print sommthing, offset print, font/form downloads, and direct print function |
| Printing Protocols: |
LPR, IPP, Raw TCP (port 9100), HTTP, Novell NDS/ Pserver/Rprinter (Bindery)/ NDPS (TCP/IP), HTTPS, IPPS |
| Resolution (print mode): |
600 dpi, 1200 dpi x 600 dpi (enhanced) |
| RIP-Once Print-Many: |
Yes (managed by host machine) |
| Utility Software: |
Sharpdesk Document Management Software |
Document Scanning
| Broadcasting - Document Scanning: |
Yes |
| Image Formats: |
Optional TIFF, PDF |
| Scan capability (color/B&W): |
Optional B&W |
| Scan Destinations (number): |
200 |
| Scan Destination type: |
Optional scan-to- email/desktop/FTP |
| Scan Resolution Settings: |
200 dpi, 300 dpi, 600 dpi |
Finishing
| Stapler / Finisher: |
Optional |
| Staple Sheet Capacity: |
30/50 |
Super G3 Fax
| Auto Dialing: |
500 auto dial/group dial destinations |
| Broadcasting - Super G3 Fax: |
Up to 200 destinations |
| Fax Features: |
F-Code transmission/reception, confidential communication, quick on-line transmission, anti-junk fax reception, out of paper memory reception, and PC faxing |
| Fax Kit: |
Optional Super G3 Fax Kit |
| Fax Memory: |
2 MB standard/ 10 MB max. (8 MB option) |
| Group Dialing Destinations: |
Up to 200 destinations |
| Modem/Speed: |
33.6 KBPS / Approximately 2 seconds with JBIG |
| Timer Functions: |
Up to 50 jobs |
|
|
