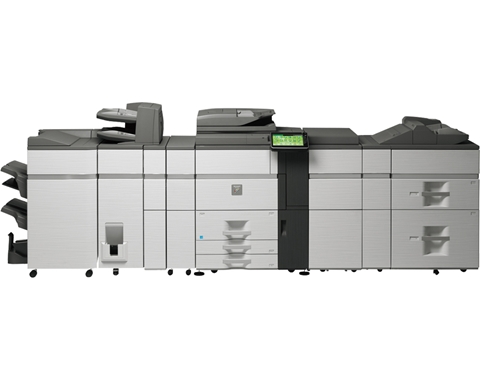

Sharp MX-6240N
 |
150-sheet duplex single pass feeder scans up to 150 ipm
Advanced Color Consistency System delivers brilliant, high-quality color output and maintains optimum color balance
Powerful 1.8 GHz true Multitasking Color document system
True 1200 x 1200 dpi printing provides clear, crisp images
Virtually maintenance-free triple air-feed paper handling option
|
Overview
Sharp’s MX-6240N high-speed color series document systems combine a modular, rugged design with robust paper handling and productive output capabilities that can streamline your document workflow like never before. Built for high volume office environments, small CRDs and copy rooms, the MX-6240N is a perfect fit where productivity and reliability are essential. A large 10.1" (diagonally measured) high-resolution, touch-screen display offers real-time scan-preview with intuitive flick and tap editing to help ensure your documents are produced accurately and without waste. With Sharp’s next-generation micro-fine toner technology combined with 1200 x 1200 dpi print resolution and true Adobe® PostScript®, your business can produce professional looking color documents in-house with breathtaking image quality that is also economical. Sharp’s Color Consistency System helps ensure brilliant, high-quality color output page-after-page. Sharp’s new paper feed options utilize air-feed technology, which offer higher reliability and reduce wear on your media. The MX-6240N has been built on the latest Sharp OSA® Development Platform, making integration with network applications and cloud services easier than ever. With Sharp’s Industry leading security platform with standard 256 bit data encryption and overwrite protection, you can rest assured that your intellectual property is well protected.
|
FEATURES |
MX-6240N |
MX-7040N |
Copy/Print Speed
(based on 8 1/2" x 11" paper) |
62-ppm |
70-ppm |
Power Consumption - Maximum (W) |
2,880 |
2,880 |
Power Consumption - Standby Mode (Low Power) (W) |
202 |
203 |
Power Consumption - Sleep Mode (W) |
1.0 |
1.0 |
Power Consumption - Power Off Mode (W) |
0.2 |
0.2 |
Technical Specifications
Main Specifications
| Account Control: |
Up to 1,000 users. Supports user-number authentication (on device), login name/password (on device) or login name/password (on device via LDAP or other servers). |
| Auto Duplexing: |
Standard |
| Auto Switching: |
Yes |
| Base Engine Description: |
High-speed color multifunction digital document system; 1.8 GHz multi-tasking controller; 1 TB GB HDD with document filing; PCL5c/PCL6 and PS3 network printing/scanning, Scan2 single-pass duplexing feeder, auto duplex, 3,100-sheet standard paper capacity |
| Bypass Tray: |
Capacity: 100 sheets (letter, legal, ledger, statement, 12"x18" & envelope size). Categories: Plain paper (16-28 lb. Bond / 60-105 gsm), Heavy paper (28-56 lb. Bond / 90-110 Index / 106-209 gsm), Envelope (20-24 lb. bond / Monarch / Com-10), Tab paper (letter only). Other types include label stock, gloss paper, pre-printed, recycled, pre-punched, letterhead, color, and OHP film. |
| Card Shot Feature: |
Yes |
| Color Modes: |
Auto Color Selection, Full Color, B&W Dual, Single Color Modes |
| Compression Type - Scan Documents: |
Monochrome Scanning: Uncompressed, G3 (MH), G4 (MR/MMR) Color/Grayscale: JPEG (high, middle, low) Internet Fax mode: MH/MMR (option) |
| Continuous Copy: |
Maximum 9999 |
| Controller Type: |
PCL6/PCL5c compatible, optional PS3 |
| Copy Features: |
Scan-once Print-many (Electronic Sorting), Offset-stacking, Auto Color Selection (ACS), Auto Paper Selection (APS), Auto Magnification Selection (AMS), Auto Tray Switching, Rotation Copy, Job Reservation, Tandem Copy, Book Copy, Margin Shift, Tab-paper Insertion, Edge Erase, Center Erase, Dual-page Copy, Cover Pages, Insert Pages, OHP Insertion, Job Build, Card Shot, Mirror Image, B/W Reversal, Centering, Proof Copy, 2-in-1, 4-in-1, Pamphlet, Photo Repeat, Multi-page Enlargement, Document Filing, Account Management, Job Programs, Stamp Mode (Date / Text / Page B&W / Color) |
| Copy Method: |
Laser, Dry Transfer, Organic Photo Conductor Ultra-Fine Toners/Developers, Magnetic & Heat Process |
| Copy/Print Speed: |
62-ppm B&W and Color (based on 8 1/2" x 11" paper) |
| Copy Size: |
Input: Min. 5 1/2" x 8 1/2", Max. 11" x 17" Output: Envelopes, Letter, Letter-R, Legal, Ledger & 12" x 18" |
| Developer System: |
Magnetic brush development |
| Display Type: |
LCD |
| Document Management: |
Sharpdesk desktop document management software (One user license) |
| Drum Type: |
Organic Photo Conductor |
| Electronic Sorting: |
Yes |
| ENERGY STAR®: |
Yes |
| Exposure Modes: |
Modes: Text, Text/Photo, Text/Printed-Photo, Photo Settings: Auto exposure control or 9 step manual exposure |
| Firmware Management: |
Flash ROM update via USB and/or network |
| First Copy Out Time: |
Platen glass: 4.0 seconds B&W; 5.6 seconds color |
| Fixed Zoom Range: |
25% to 400% (1% increments and 9 presets; DSPF 25%-200%) |
| Functions: |
Copy, print, network print, network scan, document filing |
| Fusing System: |
Heat rollers |
| Grayscale: |
256 gradations/2 levels (monochrome) |
| Hard Disk Drive: |
1-TB HDD; Document Filing: 260 GB |
| Imaging Method: |
Laser |
| Interface Type: |
Ethernet connection; 10/100 BaseT; USB 2.0 |
| Job Programs: |
48 |
| Ledger: |
Yes |
| Letter / Legal: |
Yes |
| Memory: |
Standard 5 GB (Copy/Print shared), 3 GB (printer/network scanning memory) |
| MFP Type: |
Console, multi-function high-speed workgroup color document system |
| Network Protocols: |
TCP/IP, IPv6, IPsec, SSL, SMTP, FTP, SMB, IPX/SPX, and AppleTalk® for Macintosh® environments |
| Network Security: |
SSL, IPP, IP/MAC Address Filtering, Protocol Filtering, Port Management, And User Authentication With Account Control |
| Offset Stacking: |
Standard |
| Optional Power Filter: |
Yes |
| Original Feed System: |
150-sheet duplex single pass feeder (DSPF) with Scan2 Technology |
| Originals: |
Sheet, bound documents |
| Original Size: |
Max 11" x 17" |
| Output Capacity: |
Main output tray (top) 250 sheets (face down)(option), Standard: Right-side tray 100 sheets (face down) |
| RoHS: |
Yes |
| Software: |
Sharpdesk™ desktop document management software (1 user license) with secure FTPS support) |
| Web-based Management: |
Yes |
Printing System
| Direct Printing: |
File Types: TIFF, JPEG, PCL, TXT, PDF, Encrypted PDF, and PS (PS Expansion Kit required) Methods: FTP, Web page, Email and USB memory |
| Network Operating Systems: |
Windows® 98, Windows ME, Windows XP, Windows XP x64, NT4.0 (with SP5 or later),Windows 2000, Windows Server 2003, Windows Vista, Windows Vista x64, Unix®, Novell®, Netware® 3x/4x/5x,MAC OS 9x, MAC® OSX |
| Page Description Language: |
PCL®5c, PCL6, PostScript 3 compatible, optional XPS |
| Printer Expansion Kit: |
Standard |
| Print Features: |
Continuous printing, duplex printing, pamphlet printing, N-up printing, image rotation, different cover page/last page, transparency inserts, tab printing, carbon copy print, fit-to-page, poster print, margin shift, mirror image, watermarks, overlay, confidential print, confidential batch print, print hold, proof print, bypass printing, job priority, job control, tandem printing and direct printing (Note: some features not available on certain print drivers) |
| Printing Protocols: |
LPR, IPP, PAP, Raw TCP (port 9100), FTP, Novell Pserver, Rprinter |
| Resolution (print mode): |
1200 x 1200 DPI, 600 x 600 DPI |
| RIP-Once Print-Many: |
Yes |
| Utility Software: |
Print driver, Printer Status Monitor, Printer Administration Utility |
Document Scanning
| Broadcasting - Document Scanning: |
Yes |
| Image Formats: |
JPEG, TIFF, Optional PDF |
| Scan capability (color/B&W): |
Color, B&W |
| Scan Destinations (number): |
999 |
| Scan Destination type: |
Scan-to- email/desktop/FTP |
| Hole Punching: |
Optional |
| Inserter: |
Optional |
| Mail Bin Sorter: |
Optional |
| Saddle Stitch Finisher: |
Optional |
| Saddle Stitch Function: |
Optional |
| Stapler / Finisher: |
Optional |
| Staple Sheet Capacity: |
50 |
Super G3 Fax
| Auto Dialing: |
Up to 999 destinations (combined with scan destinations) |
| Fax Features: |
Quick on-line transmission, direct transmission, F-Code transmission/reception, rotate transmission, anti-junk fax reception, automatically staple received faxes, secure fax release, out of paper memory reception, auto redial, duplex reception transaction reports, activity reports and PC fax |
| Fax Kit: |
Optional |
| Fax Memory: |
8mb (exclusive) |
| Group Dialing Destinations: |
Up to 500 |
| Inbound Routing: |
Forwards received fax data to Email |
| Long Length Originals: |
Up to 31.5" (for transmission) |
| Modem/Speed: |
33.6 KBPS / Approximately 2 seconds with JBIG |
| One Touch Destinations: |
Up to 999 destinations (combined with scan destinations) and up to 500 Groups |
| Data Security Kit: |
Optional |
| Network Expansion Kit: |
Standard |
|
|
